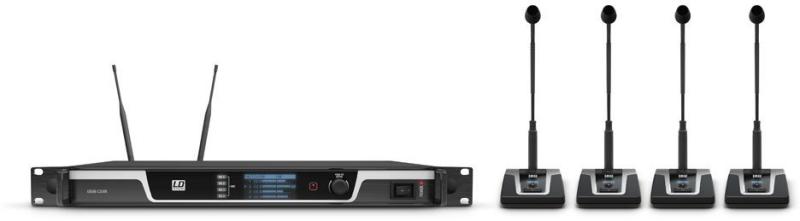

LD Systems U506 CS 4
4-Channel Wireless Conference System

• True diversity UHF wireless conference system
• Automatic channel scan
• Automatic frequency search
• Infrared frequency synchronizing of receiver and microphone unit
• Pilot tone
• Priority switching
• Automatic and manual gate modes
• Security lock
• RS-232 interface for external control

U506 CS 4 We have developed the U500® in Germany to meet all of your requirements of a wireless conference system. It offers a professionally equipped solution for effective communication and interaction with advanced technology, excellent speech intelligibility and an elegant appearance. The user-friendly True Diversity UHF system with 60 channels in 6 groups facilitates easier installations and turns conferences, meetings and round tables into successful events. The U500® terminals feature a gooseneck condenser microphone with hyper-cardioid characteristic and a light ring to display status. The heavy table stand features an XLR microphone input, 28 V phantom power, an on-off-mute switch, as well as a gain control and a selectable 130 Hz high-pass filter to effectively reduce proximity effect and structure-borne sound. A high-contrast OLED display shows radio frequency, battery status, terminal number, group and channel. The audio transmission range is 60 Hz - 16 kHz. For simple, fast configuration, the 4-channel U500® conference system receiver features automatic frequency and channel scanning, infrared synchronisation, a digital encoder and 4 buttons to directly access the individual channels. The high-contrast OLED display provides a comprehensive overview of all functions and settings such as audio and radio signal strength, and priority and battery status of the terminals. The number of simultaneously-live microphones can be configured in order to eliminate crosstalk, feedback and comb filter effects. Selectable automatic or manual gate settings and a pilot tone ensure that the U500® conference system delivers superb sound quality with excellent noise immunity. In addition to its individual channel outputs, the receiver also has a master output, an access lock to prevent unauthorised adjustment of settings, and the RS-232 interface to facilitate integration into external control systems. For system expansion, up to five U500® receivers can be cascaded and used in master-slave mode, making a maximum of 20 terminals possible. The U500® conference system is available in three versions which work in the following frequency areas: 554 - 586 MHz, 662 - 694 MHz or 823 - 832 MHz + 863 - 865 MHz
Date tehnice:   Pr oduct type Conference Systems Type Installation s Modulation Type FM Transmission frequency range 662 - 694 MHz Channels 60 (6 x 10) Groups 6 Anten na inputs 2 Antenna connector BNC Frequency response 60 - 16000 Hz Noise reduction squelch THD < 0.2 % Controls digital encoder , Power On/Off , RX 1 - 4 quick access buttons Signal-to-noise ratio > 100 dB Indicators OLED Display Audio output, balanced 4 x XLR Audio mix output, balanced XLR Width 484 mm Height 44 mm Depth 243 mm Max. output level +12 dBu Weight 6 kg Operating voltage 1,000 mA , 12 V DC LDU506CST - LD Systems U506 CST Microphone Unit for U506 CS 4 Product type Microphone Accessories Inputs XLR Rated HF output power 10 mW Controls Power / Mute Indicators LED Operating voltage 2 x AA battery Operating time up to 8 hrs. , battery-dependent Width 1 15 mm Height 54 mm Depth 135 mm Weight 0,73 kg
